26 sound butterflies and how to catch them is a research project based on the interaction between sound, biomimicry and type design.
Sound vibration is a way in which nature organizes its matter. I wanted to create an organic ephemeral typeface, therefore using sound vibration and a DIY construction with a moving laser beam, as tools for visualizing the volume and frequency of soundwaves.
By using the biomimicry principle as a way to simulate a natural system, the 26 unique characters are mimicking the erratic unpredictable movements of butterlies.
By using the biomimicry principle as a way to simulate a natural system, the 26 unique characters are mimicking the erratic unpredictable movements of butterlies.
I used a visualization tool composed of a speaker that would play 4 soundwaves from a tone generator: sine, square, triangle and sawtooth waves. The speaker was placed into a plastic box, that would itself vibrate. On top of the box a stretched out balloon was attached. And finally a laser that points into a small piece of mirror, attached to the balloon. When the red light reflects from the mirror it generates various shapes, depending on the frequency, volume, wave played.
![](https://freight.cargo.site/t/original/i/5f77f5c8e070c09ec32bd99cbc22f71e5317a3076a04fcb3b8c26f278a11efd4/bbb.png)
![](https://freight.cargo.site/t/original/i/ee4b688095dd3091e8b8b3953205edfe709b3799213e3b10fc4edc280828fb21/r.png)
![](https://freight.cargo.site/t/original/i/8dbe55ae13c114d3be410f8068ec505d9fc0e0f5577790e469bab043a654028b/hgfhg.png)
![](https://freight.cargo.site/t/original/i/37128980f8b059cc245ac802e86516ea13a7c3f2839a0d854538a1b3208f3a59/rr.png)
While generating the letters with the laser tool, I wanted to immortalize their ephemeral nature into static shapes and see how moving sound can become a flat character. In order to achieve that I drew the movements on top of the laser letter, while they were moving.
![](https://freight.cargo.site/t/original/i/b067e0b6aa474bd01d1f388ba398403ec4ce4088cbfc90aa5c0d1101867c7389/jhgvjh.png)
![](https://freight.cargo.site/t/original/i/c413491b31b3f2c7e298631715b48f553c1f9c8c4b49dc030fc509e77dd36104/jhhregrgerbh.jpg)
![](https://freight.cargo.site/t/original/i/cc8ac932f13bf6f1f6f32f109b6ae60787c8cf1c2595f39b2a7638c267f85508/sdfcsdfcscf.jpg)

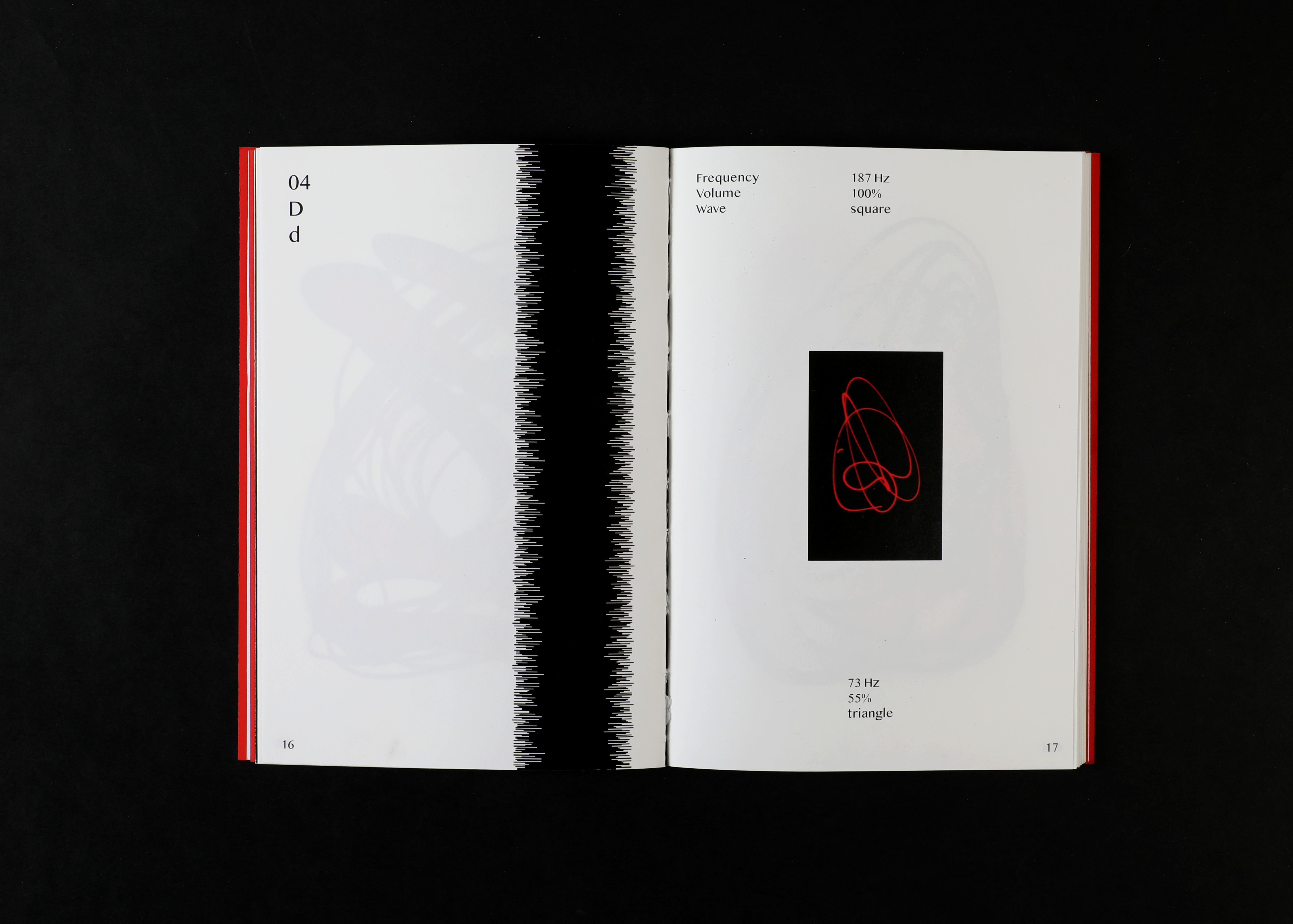

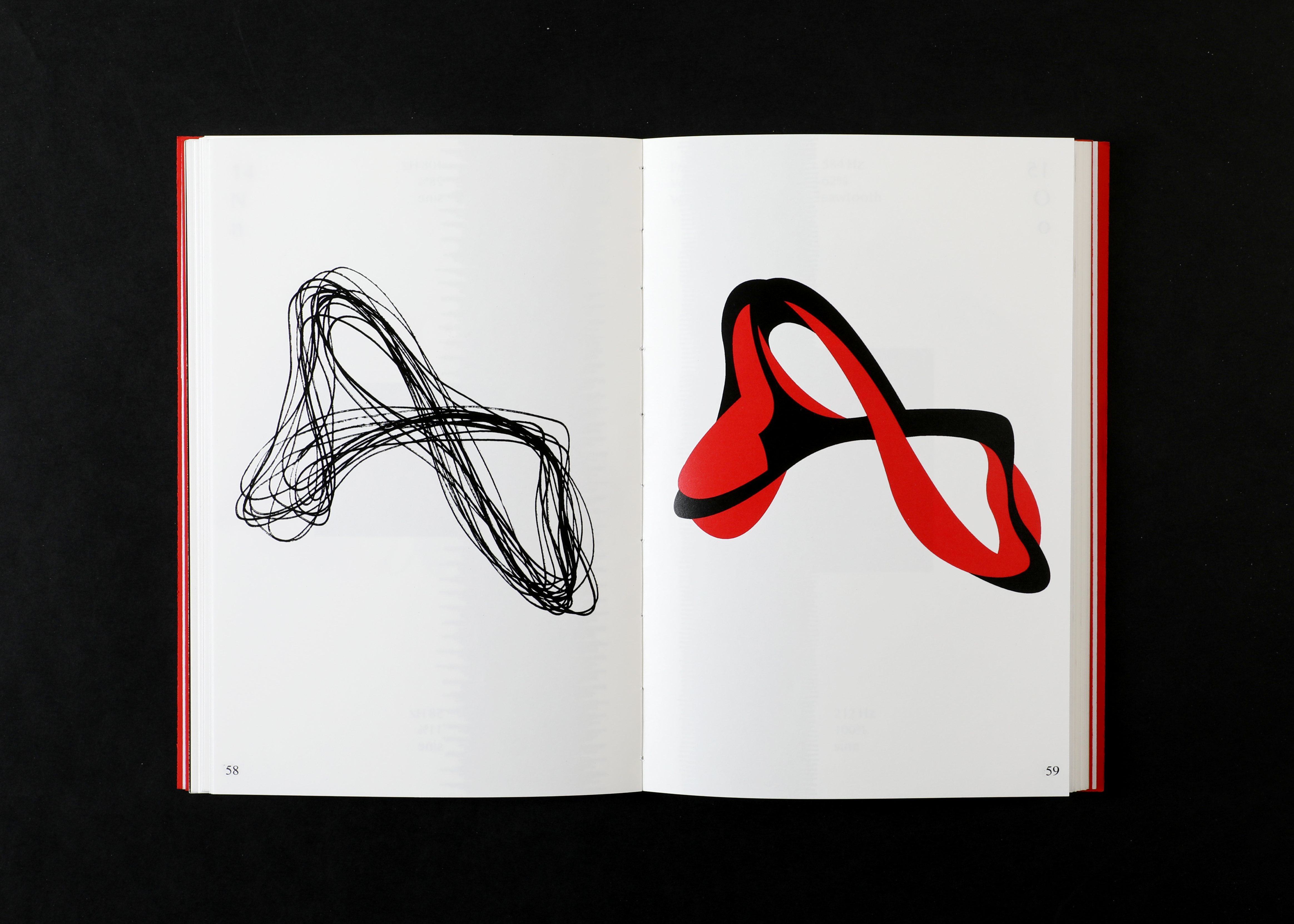

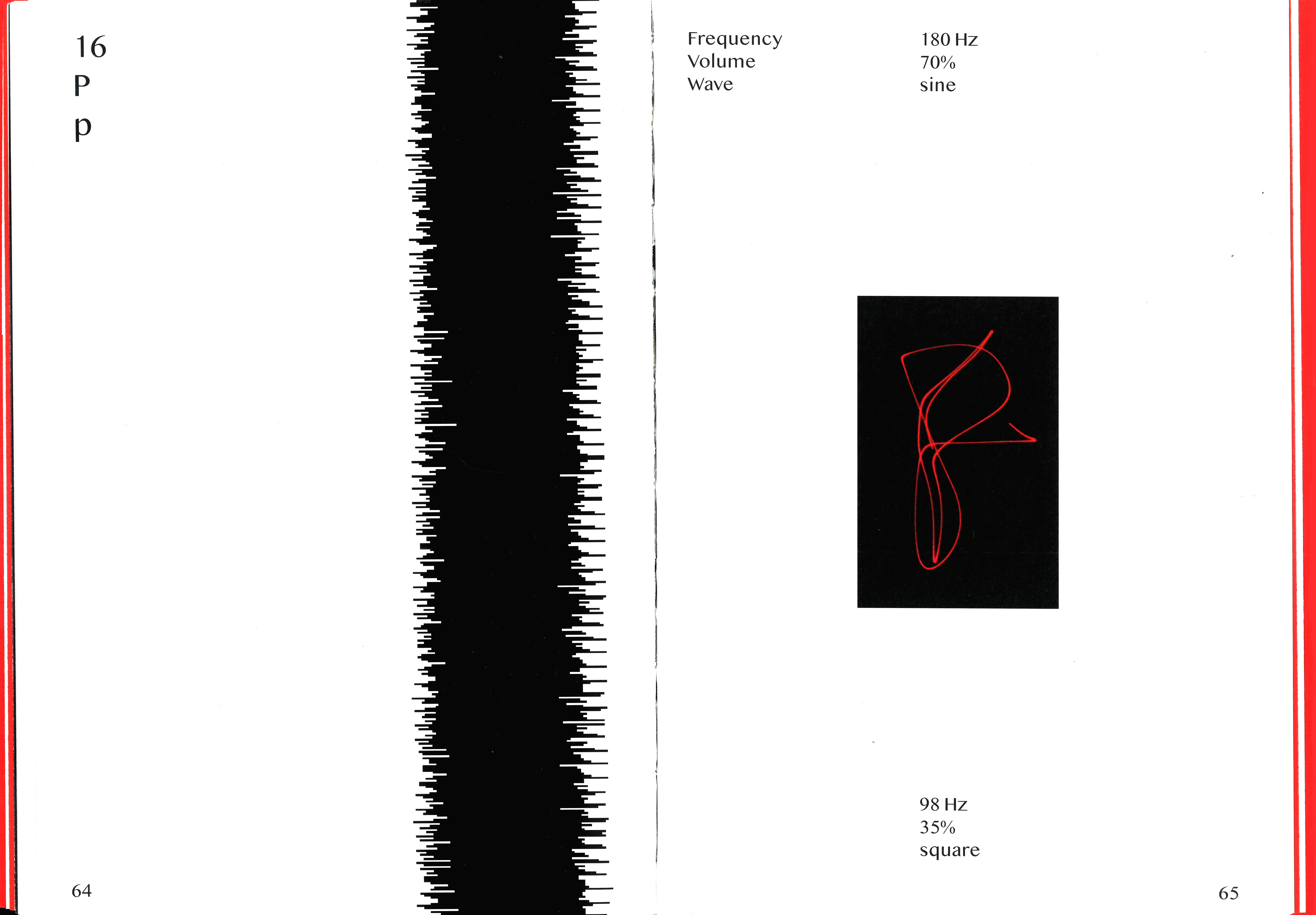

The book documents the process of creating each character, the type of wave used, volume, frequency as well as depicting the drawings together with the immortalized skelletons.
